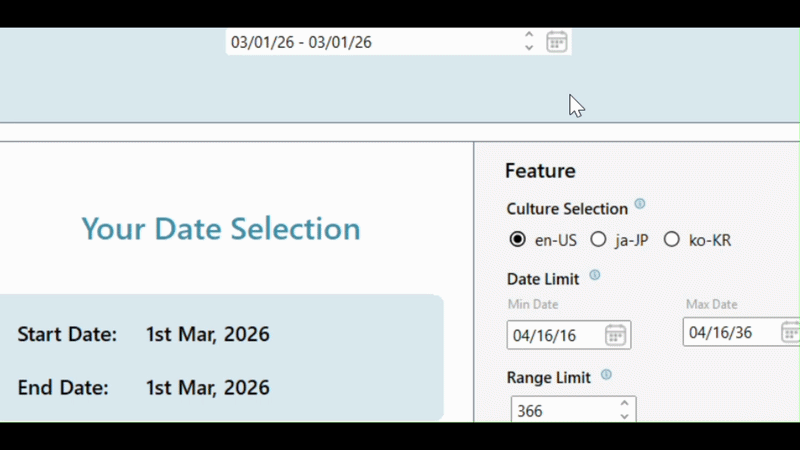

This quick start demonstrates how to create a WinForms application, add the DateRangeEdit control, and configure date range selection.
Add the DateRangeEdit Control
- Create a Windows Forms application in Visual Studio.
- Add the following assemblies to the project:
- C1.Win.Calendar
- C1.Win.Input
- C1.Win
- Drag the DateRangeEdit control from the Toolbox onto the form.
- Set the control name to dateRangeEdit, or initialize the control in code:
| C# |
コードのコピー
|
|---|---|
C1DateRangeEdit dateRangeEdit = new C1DateRangeEdit();
|
|
Configure the Control
Set the Control Size and Location
| C# |
コードのコピー
|
|---|---|
| // Set DateRangeEdit size and location dateRangeEdit.Size = new System.Drawing.Size(180, 21); dateRangeEdit.Location = new System.Drawing.Point(330, 126); |
|
Set Minimum and Maximum Selectable Dates
| C# |
コードのコピー
|
|---|---|
| // Set minimum and maximum date range dateRangeEdit.MinValue = new DateTime(2024, 01, 01); dateRangeEdit.MaxValue = new DateTime(2024, 01, 31); |
|
Enable Predefined Ranges
| C# |
コードのコピー
|
|---|---|
| dateRangeEdit.CalendarRangeSettings.ShowPredefinedRanges = true; | |
Limit the Selection Range
| C# |
コードのコピー
|
|---|---|
| dateRangeEdit.Calendar.MaxSelectionCount = 7; | |
Build and Run the Project
- Select Build > Build Solution.
- Press F5 to run the application.
