MermaidJS graph parsing in FlexDiagram enables creating and rendering diagrams using MermaidJS syntax, a widely used text-based diagramming language. This feature allows importing MermaidJS text definitions, quickly prototyping diagrams, or converting existing text-based diagrams into FlexDiagram visuals.

Create MermaidJS FlexDiagram

1. Create a text file or string that contains MermaidJS flowchart syntax.

   Text File	コードのコピー
   flowchart TD A(("Start 🍽️")) --> B["Gather Ingredients 🍅🧀🍞"] B --> C["Prepare Dough 🍞"] C --> D["Add Sauce 🍅"] D --> E{"Choose Toppings 🤔"} E -->|Cheese 🧀| F["Add Cheese 🧀"] E -->|Veggies 🥦🍄| G["Add Vegetables 🥦🍄"] E -->|Meat 🍖| H["Add Meat 🍖"] F --> I["Bake in Oven 🔥"] G --> I H --> I I --> J["Slice & Enjoy 😋🍕"] J --> K(("End ✅")) classDef default font-family:Segoe UI Emoji,font-size:16px;

2. Call the LoadMermaidGraph() method with the MermaidJS text and add the following code, ensuring that the C1.Diagram.Parser namespace is referenced.

   C#	コードのコピー
   // Read text from the file var text = File.ReadAllText(@"Resources\pizza.txt"); // Load Mermaid.js graph to the diagram // https://mermaid.js.org/syntax/flowchart.html diagram.LoadMermaidGraph(text);

   MermaidJS content can also be loaded from a string variable instead of a file

   Text File	コードのコピー
   string mermaidText = @" flowchart LR A[Start] --> B[Process] B --> C[End] "; diagram.LoadMermaidGraph(mermaidText);

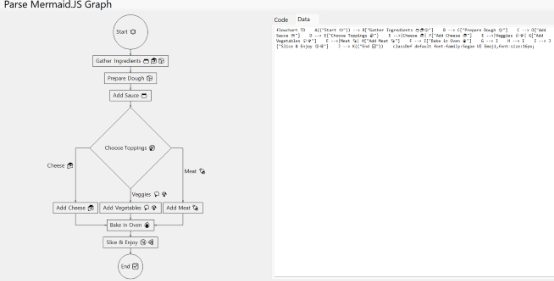

MermaidJS FlexDiagram Sample

using C1.Diagram.Parser;  // Required for LoadMermaidGraph
using C1.Win.Diagram;

namespace FlexDiagramPoC
{
  public partial class Form1 : Form
  {
    public Form1()
    {
      InitializeComponent();
      InitializeDiagram();
    }

    private void InitializeDiagram()
    {
      // Create FlexDiagram instance
      var diagram = new FlexDiagram();
      diagram.Dock = DockStyle.Fill;
      Controls.Add(diagram);

      // Read text from the file
      var text = File.ReadAllText(@"Resources\pizza.txt");

      // Load Mermaid.js graph to the diagram
      // https://mermaid.js.org/syntax/flowchart.html
      diagram.LoadMermaidGraph(text);
    }
  }
}
