An unbound diagram in FlexDiagram is created programmatically without data binding. You can define and add each node and edge along with their properties and relationships. This method enables full control over layout and appearance, making it suitable for simple static diagrams or custom flowcharts with precise configurations.

Create Unbound FlexDiagram

1. Create individual nodes and set their properties.

   C#	コードのコピー
   var startNode = new Node() { Text = "Start Process" }; var processNode = new Node() { Text = "Execute", Shape = Shape.RoundedRectangle }; var endNode = new Node() { Text = "Complete" };

2. Add the nodes to the diagram.

   C#	コードのコピー
   diagram.Nodes.Add(startNode); diagram.Nodes.Add(processNode); diagram.Nodes.Add(endNode);

3. Create edges to define the connections between nodes.

   C#	コードのコピー
   diagram.Edges.Add(new Edge() { Source = startNode, Target = processNode, TargetArrow = ArrowStyle.Normal });

4. Set the layout direction (optional).

   C#	コードのコピー
   // Set the direction of the diagram diagram.Direction = DiagramDirection.TopBottom; // or LeftRight, RightLeft, BottomTopData-Bound Diagrams (Hierarchical Data)

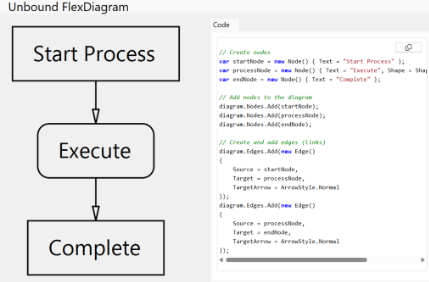

Unbound FlexDiagram Sample

using C1.Chart;
using C1.Diagram;
using C1.Diagram.Parser;
using C1.Win.Diagram;
namespace FlexDiagramPoC
{
  public partial class Form1 : Form
  {
    public Form1()
    {
      InitializeComponent();
      InitializeDiagram();
    }

    private void InitializeDiagram()
    {
      // Create FlexDiagram instance
      var diagram = new FlexDiagram();
      diagram.Dock = DockStyle.Fill;
      this.Controls.Add(diagram);

      diagram.Direction = DiagramDirection.TopBottom;

      // Create nodes
      var startNode = new Node() { Text = "Start Process" };
      var processNode = new Node() { Text = "Execute", Shape = Shape.RoundedRectangle };
      var endNode = new Node() { Text = "Complete" };

      // Add nodes to the diagram
      diagram.Nodes.Add(startNode);
      diagram.Nodes.Add(processNode);
      diagram.Nodes.Add(endNode);

      // Create and add edges (links)
      diagram.Edges.Add(new Edge()
      {
        Source = startNode,
        Target = processNode,
        TargetArrow = ArrowStyle.Normal
      });

      diagram.Edges.Add(new Edge()
      {
        Source = processNode,
        Target = endNode,
        TargetArrow = ArrowStyle.Normal
      });
    }
  }
}
