• Step 1: Add a C1Sparkline control
• Step 2: Create a Data Source
• Step 3: View C1Sparkline control

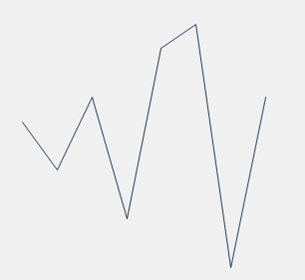

To create a simple WinForms application for Sparkline control, follow the mentioned steps and the below output appears after executing the application.

Add a C1Sparkline control

1. Create a new Windows Forms application.
2. Set the height and width of the form to 350
3. Drag and drop the C1Sparkline control from the Toolbox onto your from.
4. Set the height and width of the sparkline control to 250.

Create a Data Source

In this step, you add a class to your project that returns an enumerable collection of numeric data points to be plotted on the Sparkline chart. This code example assumes that you add a class named SampleData.cs to return a collection of numeric values.

1. In the Solution Explorer, right-click your project name and select Add | Class.
2. Specify the name of the class i.e. SampleData and click Add.
3. Add relevant code to create an enumerable collection of numeric data and return the same in a method.
   • CS
   • CS

   C#	コードのコピー
   class SampleData { public List<double> Sales { get { List<double> data = new List<double>() { 1.0, -1.0, 2.0, -3.0, 4.0, 5.0, -5.0, 2.0 }; return data; } } }

   VB	コードのコピー
   Class SampleData Public ReadOnly Property Sales As List(Of Double) Get Dim data As List(Of Double) = New List(Of Double)() From { 1.0, -1.0, 2.0, -3.0, 4.0, 5.0, -5.0, 2.0 } Return data End Get End Property End Class

View C1Sparkline control

The SampleData.cs class added in the above step returns a collection of numeric values using the ?ESTRONG>Sales?Eproperty defined in the class. In this step, you bind this collection to the Sparkline control so that data can be plotted at runtime.

1. In the Form1_Load event, create an instance of SampleData class and assign the value returned by the Sales property to the control's Data property.
   • CS
   • CS

   C#	コードのコピー
   SampleData sampleData = new SampleData(); c1Sparkline1.Data = sampleData.Sales;

   VB	コードのコピー
   Dim sampleData As SampleData = New SampleData() c1Sparkline1.Data = sampleData.Sales

To create a simple WinForms application in .NET5 Core for Sparkline control, follow the mentioned steps and the below output appears after executing the application.

Add a C1Sparkline control

1. Create a new Windows Forms .NET Core application.
2. Set the height and width of the form to 350
3. In the Solution Explorer, right click Dependencies and choose Manage NuGet Packages and add C1.Win.Sparkline .NET 5 packages.
4. Switch to code view and add the following code in the code behind of Form.cs file

      // C1Sparklineコントロールを初期化します

           C1Sparkline sparkline= new C1Sparkline();

      // C1Sparklineコントロールをフォームに追加します

            this.Controls.Add(sparkline);

Create a Data Source

In this step, you add a class to your project that returns an enumerable collection of numeric data points to be plotted on the Sparkline chart. This code example assumes that you add a class named SampleData.cs to return a collection of numeric values.

1. In the Solution Explorer, right-click your project name and select Add | Class.
2. Specify the name of the class i.e. SampleData and click Add.
3. Add relevant code to create an enumerable collection of numeric data and return the same in a method.
   • CS

   class SampleData
       {
           public List<double> Sales
           {
               get
               {
                   List<double> data = new List<double>() { 1.0, -1.0, 2.0, -3.0, 4.0, 5.0, -5.0, 2.0 };
                   return data;
               }
           }
       }


View C1Sparkline control

The SampleData.cs class added in the above step returns a collection of numeric values using the <STRONG>Sales property defined in the class. In this step, you bind this collection to the Sparkline control so that data can be plotted at runtime.

1. In the Form1_Load event, create an instance of SampleData class and assign the value returned by the Sales property to the control's Data property.
   • CS


   // SampleDataクラスを初期化します
   SampleData sampleData = new SampleData();
   // SampleDataクラスで使用可能な「Sales」リストをC1Sparklineコントロールの「Data」プロパティに割り当てます
   sparkline.Data = sampleData.Sales;
