The DataFilter control supports serialization through SaveFilterExpression and LoadFilterExpression methods of the C1DataFilter class. The SaveFilterExpression method saves the current filter expressions from C1.Win.DataFilter.C1DataFilter.Filters collection to an XML file. The LoadFilterExpression method loads the saved filter expressions from an XML file.

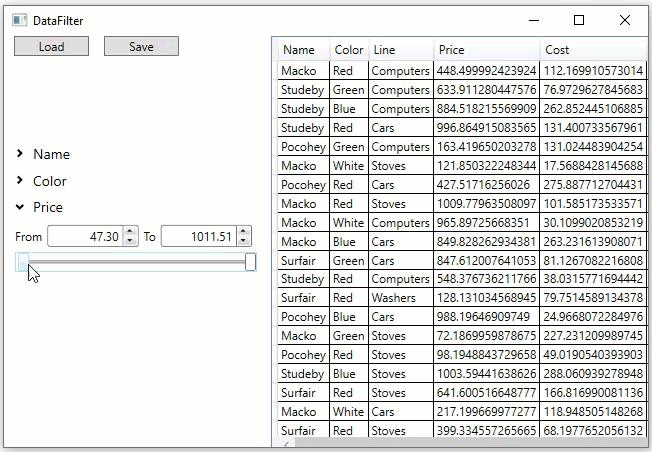

The following GIF demonstrates serialization and de-serialization support in the DataFilter control.

The following code shows an example of saving filter expressions to an XML file:

Private Sub Button_Click(sender As Object, e As RoutedEventArgs)
    'xmlファイルから現在のフィルタ式をロードします
    c1DataFilter.LoadFilterExpression("SavedFilters.xml")
    MessageBox.Show("Loaded saved Filter state.")
End Sub

private void Button_Click_1(object sender, RoutedEventArgs e)
{
    //現在のフィルタ式をxmlファイルに保存します
    c1DataFilter.SaveFilterExpression("SavedFilters.xml");
    MessageBox.Show("Filter state saved.");
}

The following code shows an example of loading filter expressions from an XML file:

Private Sub Button_Click_1(sender As Object, e As RoutedEventArgs)
    '現在のフィルタ式をxmlファイルに保存します
    c1DataFilter.SaveFilterExpression("SavedFilters.xml")
    MessageBox.Show("Filter state saved.")
End Sub

private void Button_Click(object sender, RoutedEventArgs e)
{
    //xmlファイルから現在のフィルタ式をロードします
    c1DataFilter.LoadFilterExpression("SavedFilters.xml");
    MessageBox.Show("Loaded saved Filter state.");
}
