Gallery displays a collection of related commands in a Ribbon. The Gallery contains a list of clickable items. Each item when clicked shows the result visually on the selected text.

The GIF below illustrates how the text changes upon applying various Styles from the Gallery.

The image below shows a gallery item in the C1Ribbon control.

The Ribbon Gallery has a page-up and page-down button to scroll up and down the gallery. There is also a popup launcher button that opens a window with ribbon items.

Configuring Gallery at Design-Time

The Ribbon Gallery can be added at design-time using the Ribbon Group Floating Toolbar or RibbonGroup Items Collection Editor. Also, you can customize the look of the Ribbon Gallery using the Ribbon Gallery Floating ToolBar or by editing the properties of Gallery in the Properties Window. Refer this フリーツールバー, for more information on floating toolbars. You can add items to Gallery using the RibbonGallery Items Collection Editor and RibbonGallery MenuItems Collection Editor. For more info on Collection Editors, refer this コレクションエディター.

The image below shows the floating toolbar of Gallery.

Adding Ribbon Gallery and Ribbon Gallery Items

The user can also add Gallery and Gallery items in the C1Ribbon control through code using the RibbonGallery class and RibbonGalleryItem class. For instance, the code below depicts how to add a gallery of shapes to the Ribbon control.

Visual Basic
C#

Visual Basic

' リボン項目のRibbonGalleryを追加します
Dim shapesGallery As RibbonGallery = New RibbonGallery()
shapesGallery.ToolTip = "Select a shape"
Dim rectShape As RibbonGalleryItem = New RibbonGalleryItem("Rectangle", Image.FromFile("images\rect.png"))
Dim circleShape As RibbonGalleryItem = New RibbonGalleryItem("Circle", Image.FromFile("images\circle.png"))
Dim triangleShape As RibbonGalleryItem = New RibbonGalleryItem("Triangle", Image.FromFile("images\triangle.png"))
Dim hexagonShape As RibbonGalleryItem = New RibbonGalleryItem("Hexagon", Image.FromFile("images\hexagon.png"))
shapesGallery.Items.Add(rectShape)
shapesGallery.Items.Add(circleShape)
shapesGallery.Items.Add(triangleShape)
shapesGallery.Items.Add(hexagonShape)
formatGroup.Items.Add(shapesGallery)

// リボン項目のRibbonGalleryを追加します
RibbonGallery shapesGallery = new RibbonGallery();
shapesGallery.ToolTip = "Select a shape";
RibbonGalleryItem rectShape = new RibbonGalleryItem("Rectangle", Image.FromFile(@"images\rect.png"));
RibbonGalleryItem circleShape = new RibbonGalleryItem("Circle", Image.FromFile(@"images\circle.png"));
RibbonGalleryItem triangleShape = new RibbonGalleryItem("Triangle", Image.FromFile(@"images\triangle.png"));
RibbonGalleryItem hexagonShape = new RibbonGalleryItem("Hexagon", Image.FromFile(@"images\hexagon.png"));
shapesGallery.Items.Add(rectShape);
shapesGallery.Items.Add(circleShape);
shapesGallery.Items.Add(triangleShape);
shapesGallery.Items.Add(hexagonShape);
formatGroup.Items.Add(shapesGallery);

The snapshot of the resulting ribbon control is shown below:

The user can change the position of the image and text of each gallery item. You can place the image above, before or after the text using the ImageAboveText, ImageBeforeText and ImageAfterText properties of GalleryItemTextImageRelation enum.

You can also assign the position of image and text of each item in the gallery via code:

Visual Basic
C#

Visual Basic

' ギャラリー項目のテキストと画像の位置を指定します。
ribbonGallery1.GalleryItemTextImageRelation = GalleryItemTextImageRelation.ImageBeforeText
ribbonGallery2.GalleryItemTextImageRelation = GalleryItemTextImageRelation.ImageAfterText
ribbonGallery3.GalleryItemTextImageRelation = GalleryItemTextImageRelation.ImageAboveText
ribbonGallery4.GalleryItemTextImageRelation = GalleryItemTextImageRelation.ImageBeforeText

// ギャラリー項目のテキストと画像の位置を指定します。
ribbonGallery1.GalleryItemTextImageRelation = GalleryItemTextImageRelation.ImageBeforeText;
ribbonGallery2.GalleryItemTextImageRelation = GalleryItemTextImageRelation.ImageAfterText;
ribbonGallery3.GalleryItemTextImageRelation = GalleryItemTextImageRelation.ImageAboveText;
ribbonGallery4.GalleryItemTextImageRelation = GalleryItemTextImageRelation.ImageBeforeText;

Gallery Grouping

If you click on the popup launcher button, it displays a small window of gallery items, which are grouped by group names.

The image below shows the popup gallery window with items arranged in two groups, Common and Extended.

Grouping in gallery can be done at design time by assigning GroupName to each gallery item in the RibbonGallery Items Collection Editor.

You can also assign group names to gallery items programmatically using the GroupName property of RibbonGalleryItem class. This is shown in the code snippet below:

Visual Basic
C#

Gallery Zooming

The C1Ribbon control supports zooming within the Gallery. The user can rest the cursor on each item and get a zoomed preview of that item image.

At design time, the zooming feature can be activated using the AllowZooming property of Ribbon Gallery in the Properties window. Note that for the zooming property to work, the ItemSize property of the Gallery should be less than the image size of each item.

You can also add the zooming feature via code using the AllowZooming property of RibbonGallery class.

Visual Basic
C#

Gallery Filtering

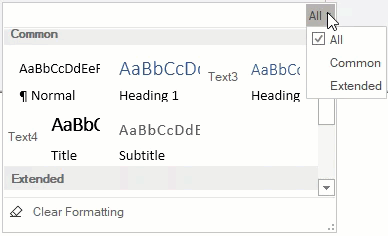

The C1Ribbon control supports filtering in the ribbon gallery. It allows you to filter items by gallery groups. This is illustrated in the GIF below:

At design time, the filtering feature can be activated using the AllowGroupFiltering property of Ribbon Gallery in the Properties window.

You can also add the filtering feature via code using the AllowGroupFiltering property of RibbonGallery class.

Visual Basic
C#

Owner-Drawn Gallery

With 'Owner-Drawn' feature, the items are not drawn with the default logic of Ribbon, rather they are drawn with a custom logic defined by the user of the application. This is useful in cases where complex customizations need to be performed. You can render the contents of the RibbonGallery as Owner Drawn by writing a handler for the DrawItem event. This event is raised as needed to display the contents of Gallery when its OwnerDraw property is set to True.

To create the owner-drawn RibbonGallery in the above illustration, follow the steps below:

Add the following code the Form_Load event:

C#	コードのコピー
//OwnerDraw プロパティを設定し、DrawItem イベントをオーナー描画 RibbonGallery 項目に連結します。 ribbonGallery.OwnerDraw = true; ribbonGallery.DrawItem += RibbonGallery_DrawItem;

コードのコピー

//OwnerDraw プロパティを設定し、DrawItem イベントをオーナー描画 RibbonGallery 項目に連結します。
ribbonGallery.OwnerDraw = true;
ribbonGallery.DrawItem += RibbonGallery_DrawItem;

Implement the DrawItem event:

C#	コードのコピー
//RibbonGallery 項目をオーナー描画するように DrawItem イベントを処理します。 private void RibbonGallery_DrawItem(object sender, C1.Win.Ribbon.DrawItemEventArgs e) { switch (e.Item.Name) { case "Rectangle": Rectangle srect = new Rectangle(e.Bounds.X + 10, e.Bounds.Y + 10, 60, 30); e.Graphics.DrawRectangle(new Pen(Color.BlueViolet), srect); e.Graphics.DrawString("Rectangle", new Font("Arial", 8), new SolidBrush(Color.Maroon), new PointF(e.Bounds.X + 15, e.Bounds.Y + 45)); break; case "Circle": Rectangle crect = new Rectangle(e.Bounds.X + 25, e.Bounds.Y + 5, 40, 40); e.Graphics.DrawEllipse(new Pen(Color.BlueViolet), crect); e.Graphics.DrawString("Circle", new Font("Arial", 8), new SolidBrush(Color.Maroon), new PointF(e.Bounds.X + 30, e.Bounds.Y + 45)); break; case "Triangle": Point point1 = new Point(e.Bounds.X + 35, e.Bounds.Y + 5); Point point2 = new Point(e.Bounds.X + 15, e.Bounds.Y + 45); Point point3 = new Point(e.Bounds.X + 55, e.Bounds.Y + 45); Point[] curvePoints = { point1, point2, point3 }; e.Graphics.DrawPolygon(new Pen(Color.BlueViolet), curvePoints); e.Graphics.DrawString("Triangle", new Font("Arial", 8), new SolidBrush(Color.Maroon), new PointF(e.Bounds.X + 15, e.Bounds.Y + 45)); break; } }

コードのコピー

//RibbonGallery 項目をオーナー描画するように DrawItem イベントを処理します。
private void RibbonGallery_DrawItem(object sender, C1.Win.Ribbon.DrawItemEventArgs e)
{
    switch (e.Item.Name)
    {
        case "Rectangle":
            Rectangle srect = new Rectangle(e.Bounds.X + 10, e.Bounds.Y + 10, 60, 30);
            e.Graphics.DrawRectangle(new Pen(Color.BlueViolet), srect);
            e.Graphics.DrawString("Rectangle", new Font("Arial", 8), new SolidBrush(Color.Maroon), new PointF(e.Bounds.X + 15, e.Bounds.Y + 45));
            break;

        case "Circle":
            Rectangle crect = new Rectangle(e.Bounds.X + 25, e.Bounds.Y + 5, 40, 40);
            e.Graphics.DrawEllipse(new Pen(Color.BlueViolet), crect);
            e.Graphics.DrawString("Circle", new Font("Arial", 8), new SolidBrush(Color.Maroon), new PointF(e.Bounds.X + 30, e.Bounds.Y + 45));
            break;

        case "Triangle":
            Point point1 = new Point(e.Bounds.X + 35, e.Bounds.Y + 5);
            Point point2 = new Point(e.Bounds.X + 15, e.Bounds.Y + 45);
            Point point3 = new Point(e.Bounds.X + 55, e.Bounds.Y + 45);
            Point[] curvePoints = { point1, point2, point3 };
            e.Graphics.DrawPolygon(new Pen(Color.BlueViolet), curvePoints);                    e.Graphics.DrawString("Triangle", new Font("Arial", 8), new SolidBrush(Color.Maroon), new PointF(e.Bounds.X + 15, e.Bounds.Y + 45));
            break;
    }
}
